AKASA Fermi CM5 1U Fanless case f. Raspberry Pi CM5 (A-RA18-M1B)

PRODUCT IS CURRENTLY NOT AVAILABLE !

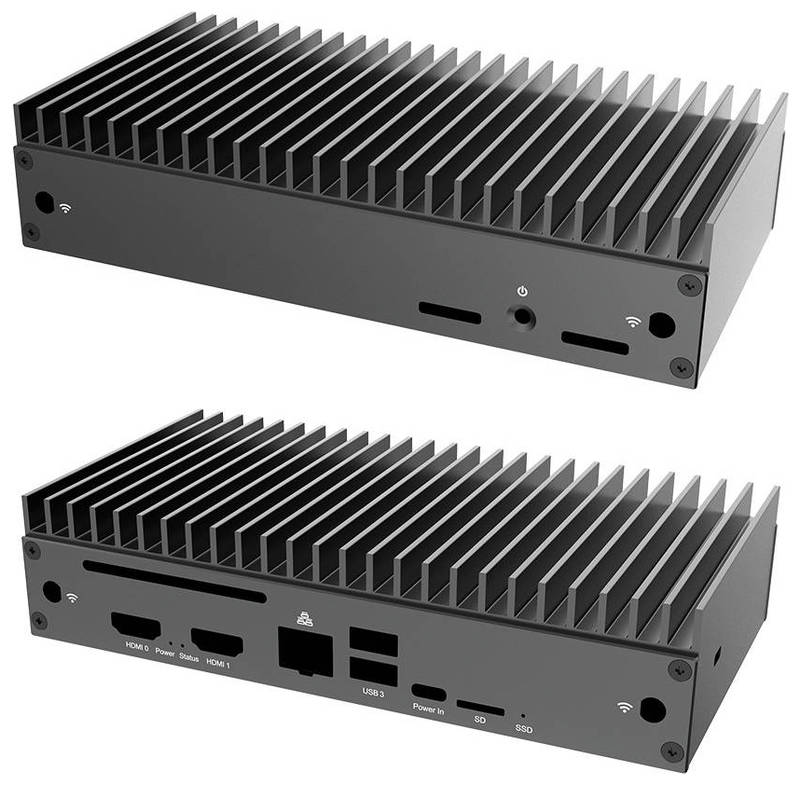

AKASA Fermi CM5 <b>1U Fanless</b> case f. Raspberry Pi CM5 (A-RA18-M1B)
  • 1U Fanless !
  • Raspberry Pi CM5 !
  • 10W TDP Support !
  • A-RA18-M1B !

Slim 1U aluminium case with passive fanless cooling for Raspberry Pi Compute Module 5 and CM5 IO Board. The case supports up to 10W TDP, provides full I/O interface access and is ideal for industrial, commercial and embedded long-life applications.

Features :

  • Passive fanless aluminium case for Raspberry Pi Compute Module 5 and CM5 IO Board
  • Slim 1U chassis design
  • Full CM5 IO Board interface access
  • Internal clearance for M.2 NVMe SSD, 40-pin Raspberry Pi HAT and CSI / DSI camera and display
  • Wall mounting brackets included
  • Optional 1U 10-inch rackmount front panel available
  • Ideal for industrial, commercial [more]

    Share


SSD (M.2 NVME):

Slim 1U aluminium case with passive fanless cooling for Raspberry Pi Compute Module 5 and CM5 IO Board. The case supports up to 10W TDP, provides full I/O interface access and is ideal for industrial, commercial and embedded long-life applications.

Features :

  • Passive fanless aluminium case for Raspberry Pi Compute Module 5 and CM5 IO Board
  • Slim 1U chassis design
  • Full CM5 IO Board interface access
  • Internal clearance for M.2 NVMe SSD, 40-pin Raspberry Pi HAT and CSI / DSI camera and display
  • Wall mounting brackets included
  • Optional 1U 10-inch rackmount front panel available
  • Ideal for industrial, commercial and embedded long-life applications



Material Black sandblasted anodised aluminium
Wall Mounting Supported
Dimensions 185 x 93 x 43.6 mm (W x D x H)
Motherboard Support Raspberry Pi Compute Module 5 with Raspberry Pi Compute Module 5 IO Board
Maximum TDP Support 10W
Volume 0.8L
Front I/O Opening(s) Display/camera slot x2, antenna fitting holes x2, power button x1
Rear I/O Opening(s) HDMI x2, GPIO slot x1, antenna fitting holes x2, Ethernet x1, USB Type-A x2, USB Type-C (power-in) x1, microSD slot x1, SSD LED, power LED, status LED
Antenna Fitting Holes 4
Security Kensington lock
Product Code A-RA18-M1B
Data sheet Download (PDF)
Data sheet Print view
